Handheld PDA Terminal Wins 10 Portable Data Collector 2D Barcode Scanner WIFI 4G Bluetooth GPS

$527.00 USD

Sale Sold out

Shipping calculated at checkout.

Color Black

Quantity

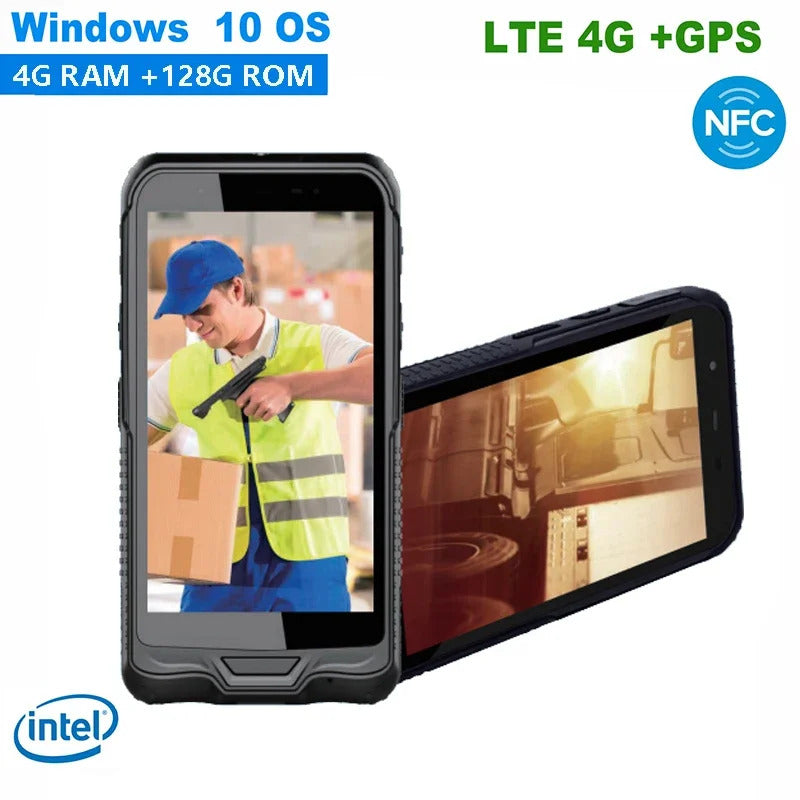

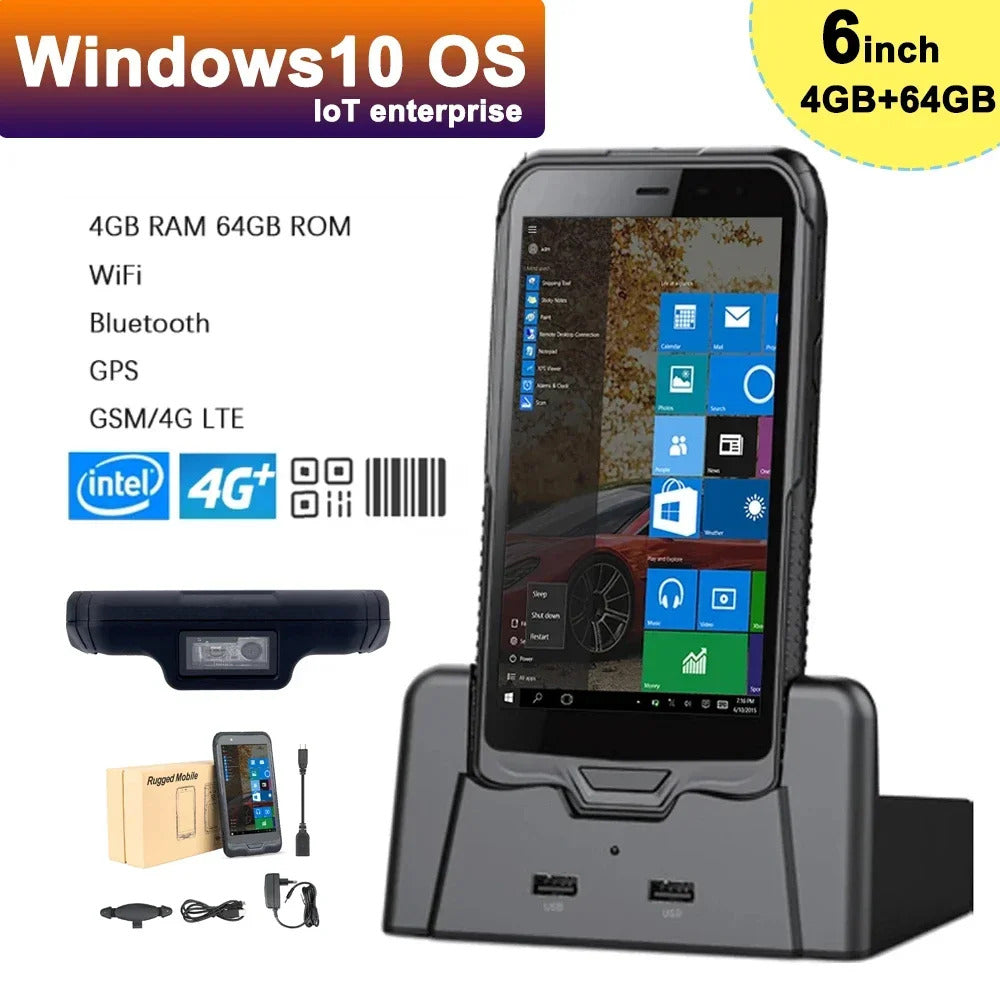

Windows10 IOT Enterprise OS Handheld PDA WIN10 Data Collector Rugged Terminal with 2D Barcode Scanner NFC 4GB 64GB Mobile Pistol

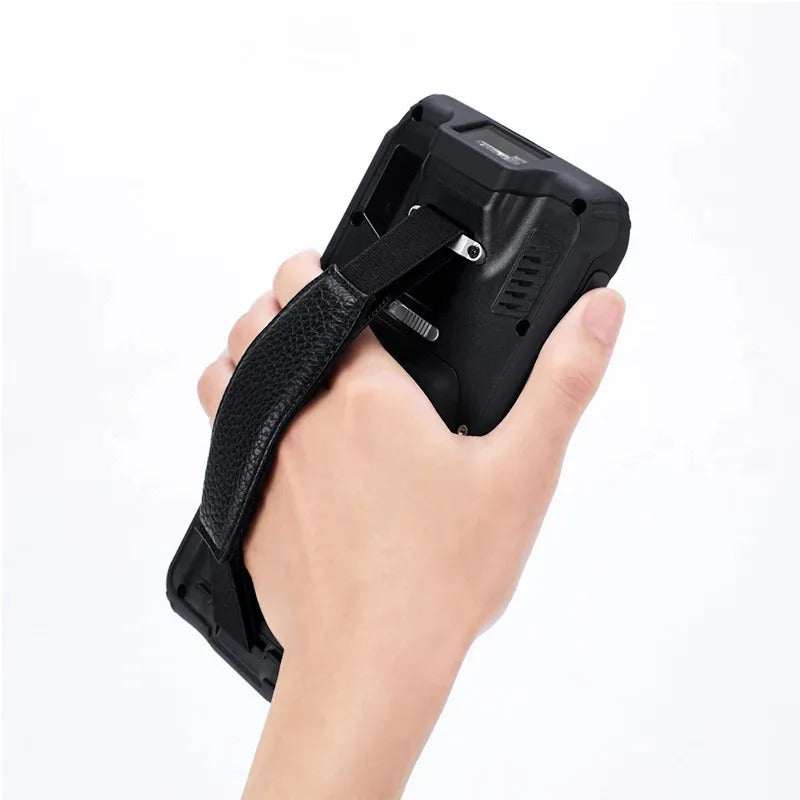

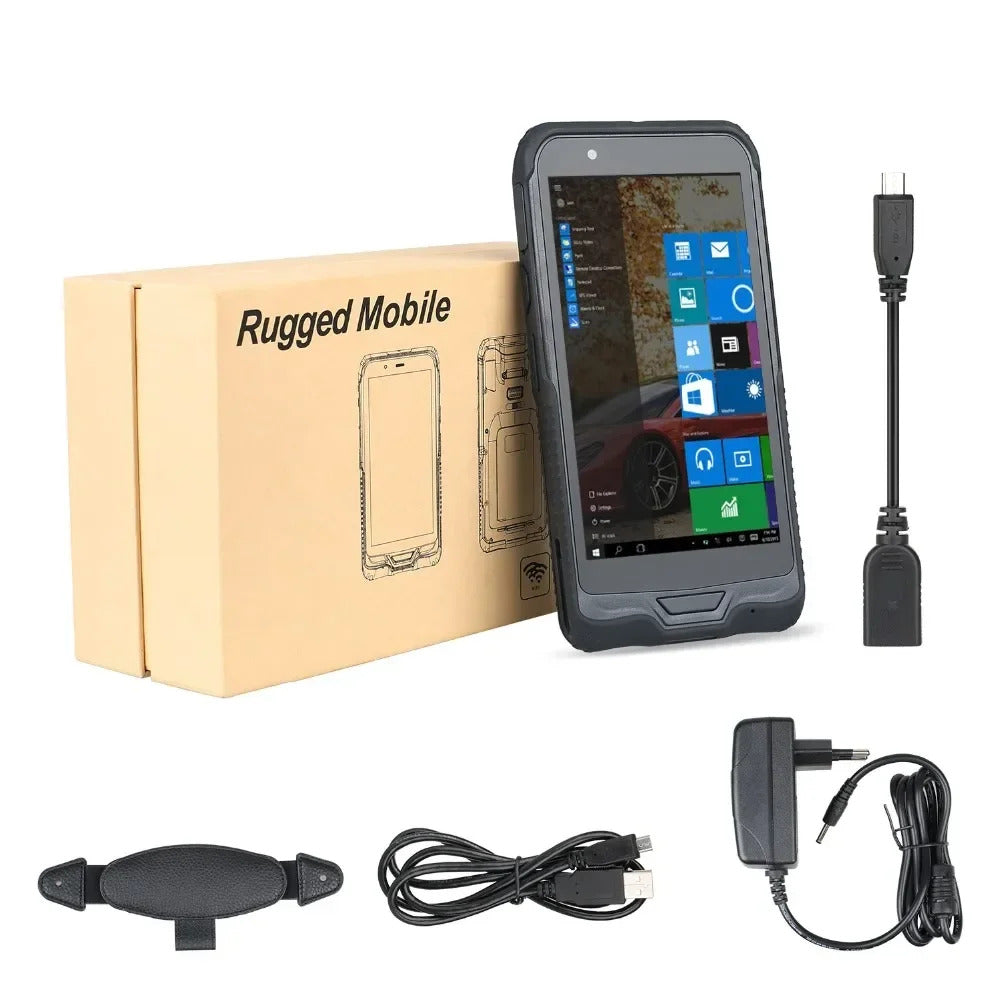

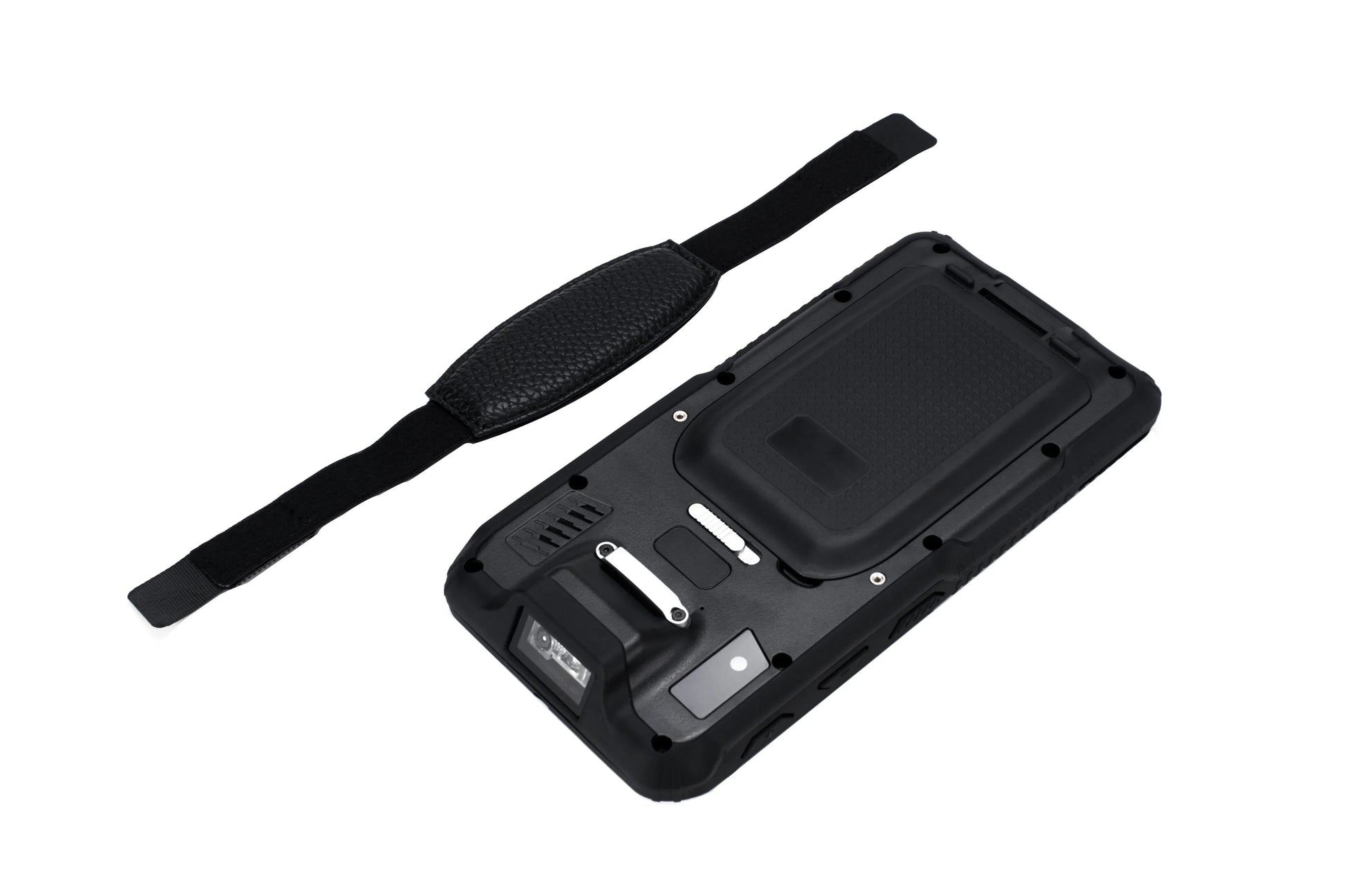

(Note:We send the hand strap for free as a gift!!!!!!)

Basic feature:

Intel Z8350 / Windows 10 / Gorilla Glass TP
Memory:4GB,64GB,4G LTE,GPS,WiFi ,Bluetooth /NFC reader
Camera Front 2MP, Rear 5MP
3.7V 5000mAh Li-Batttery

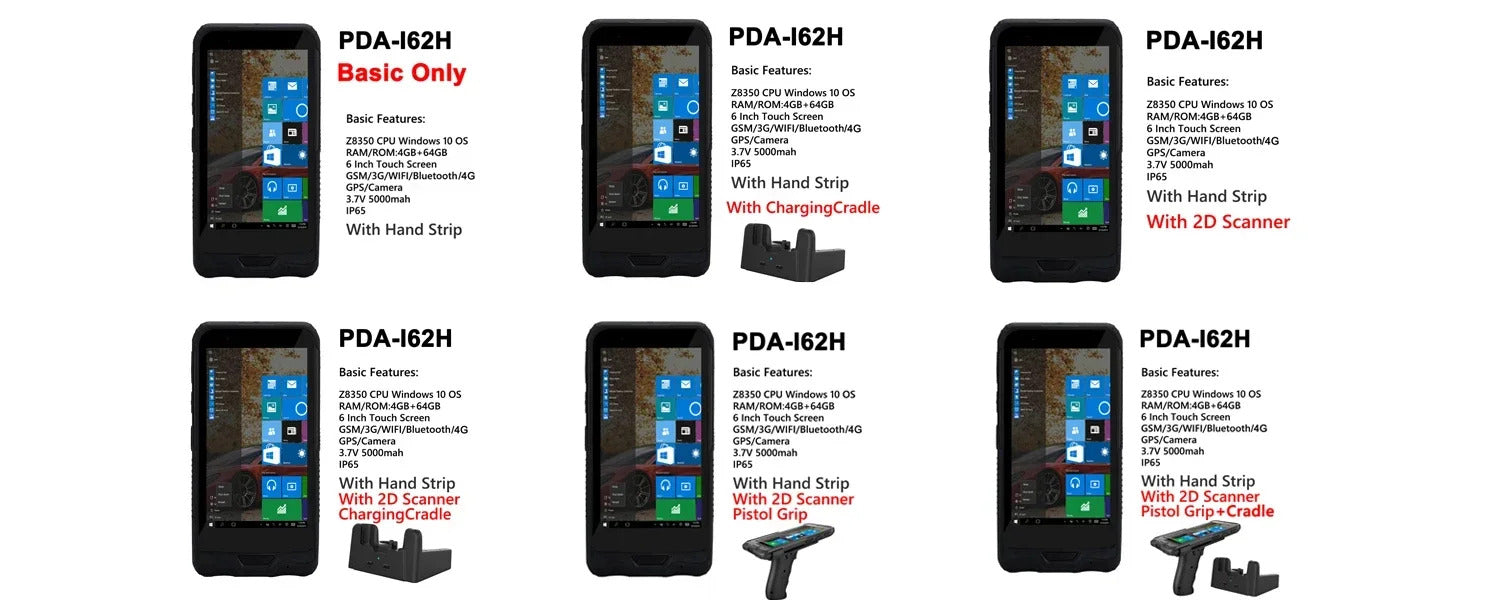

Please note:there are many options for choose when you place order:

Option 1:Basic features(Window10 OS,4GB 64GB,3G/4G LTE/WIFI/BT/GPS/Camera)

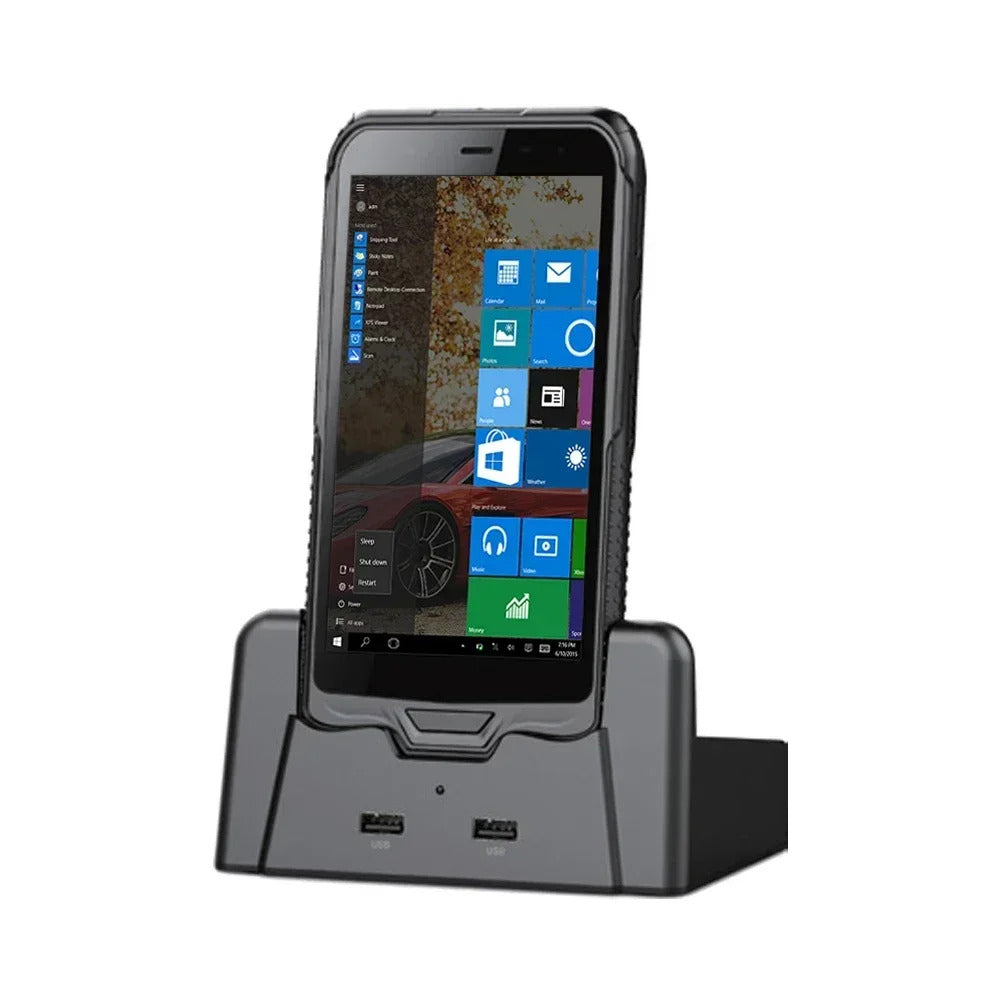

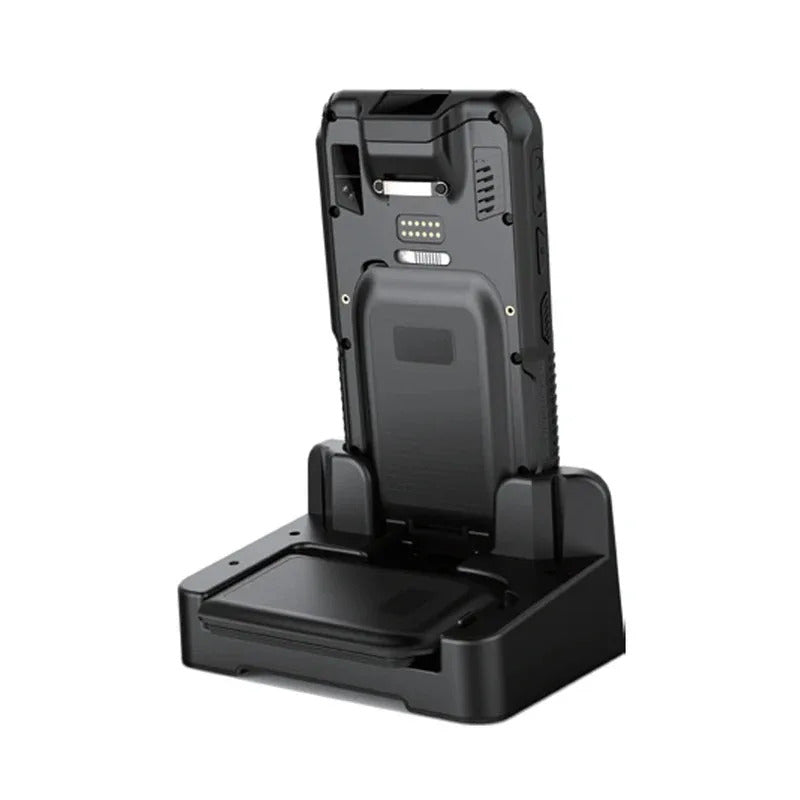

Option 2:Basic features with Charging Cradle

Option 3:Basic features with 2D Barcode Scanner

Option 4:Basic features with 2D Scanner Charging Cradle

Option 5:Basic features with 2D Scanner Pistol Grip

Option 6:Basic features with 2D Scanner Charging Cradle Pistol Grip

(Please contact with our seller if any other functions if you need.

Mason Mei:8618682169806WhatsApp/Mobile/Skype);Email:mason@msench.com

Product Details

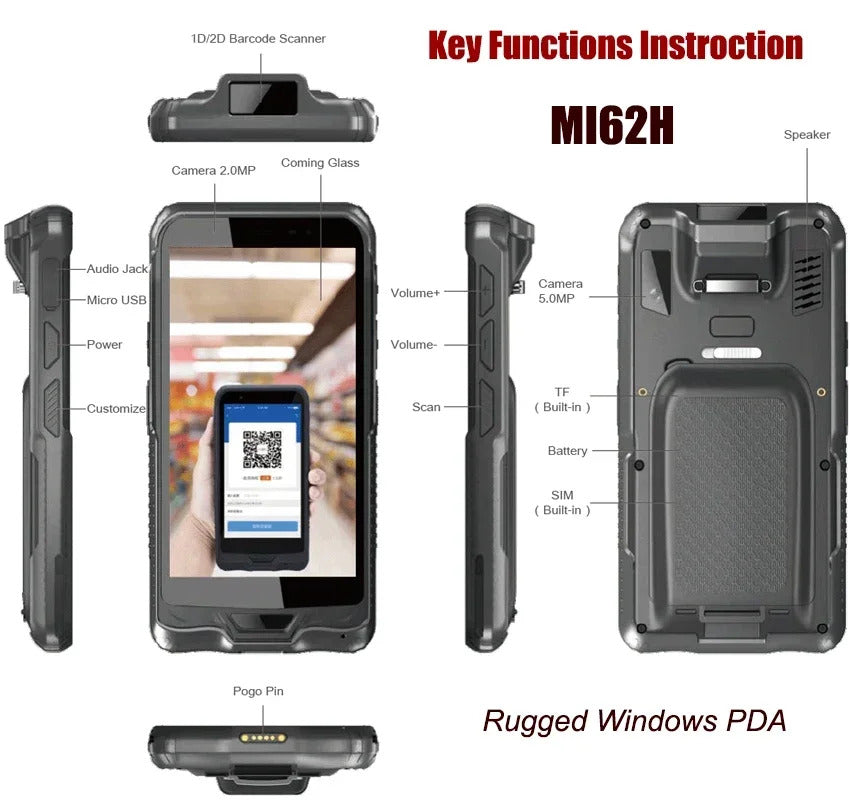

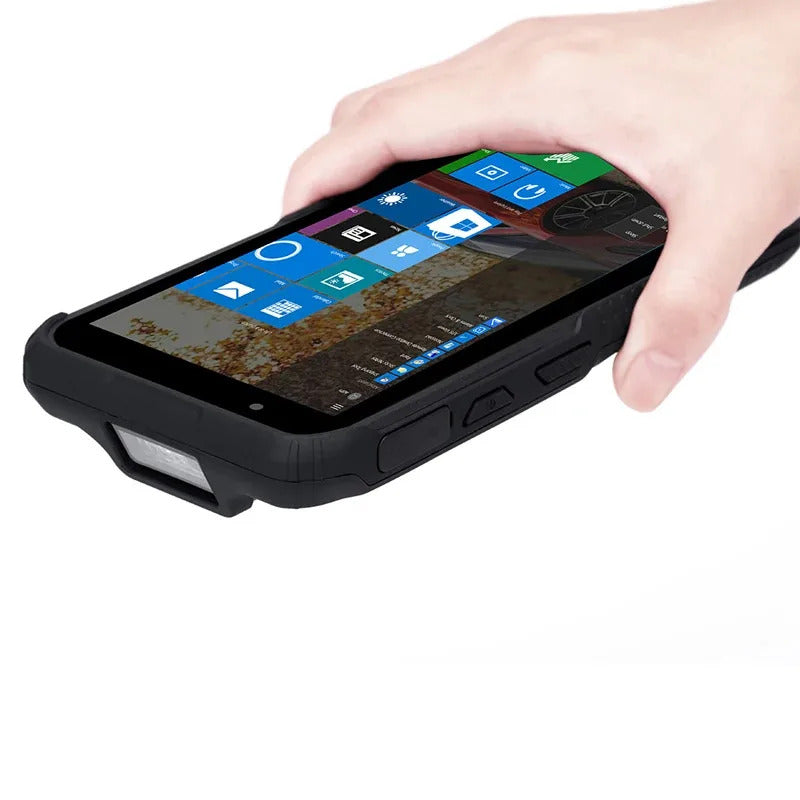

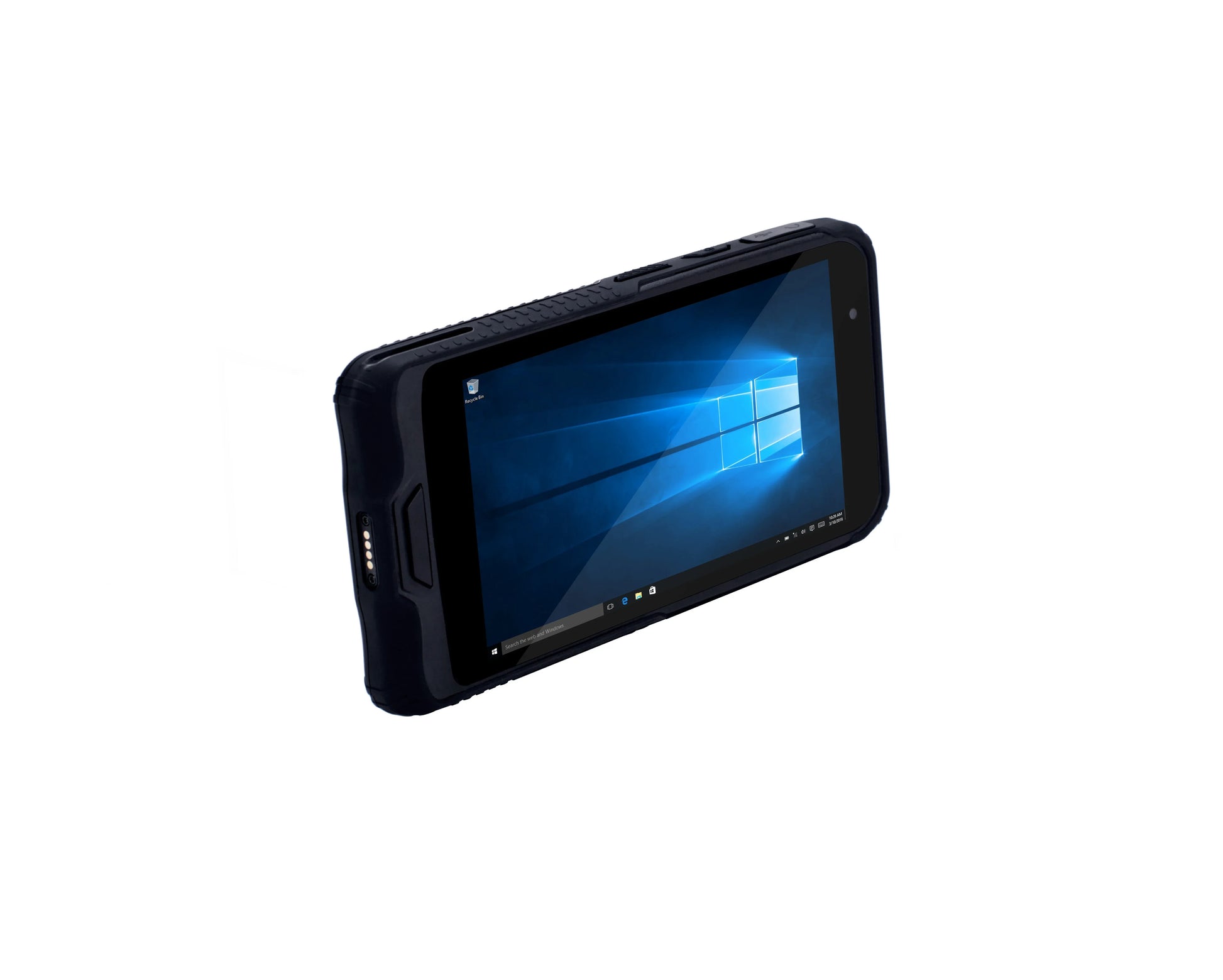

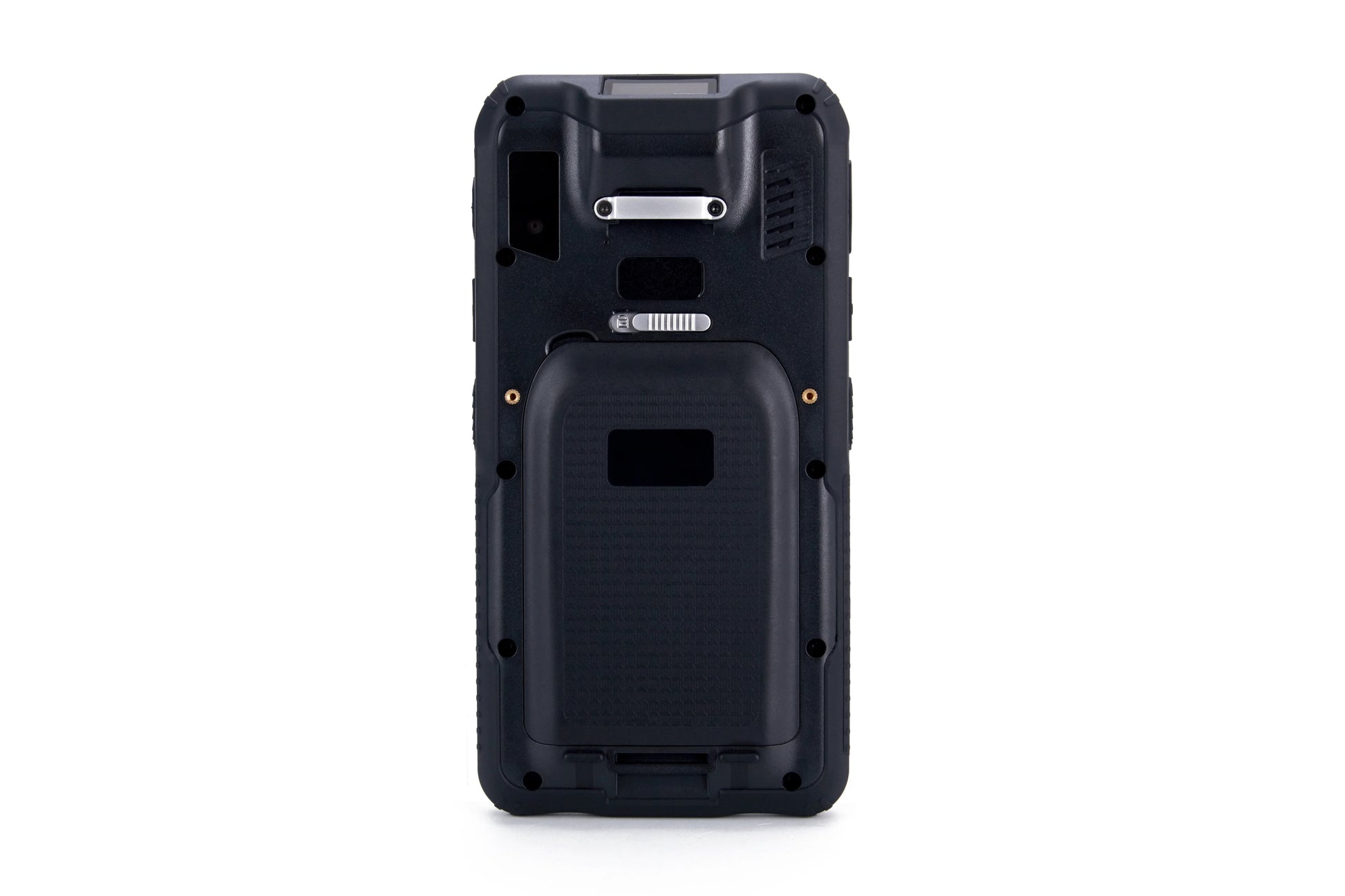

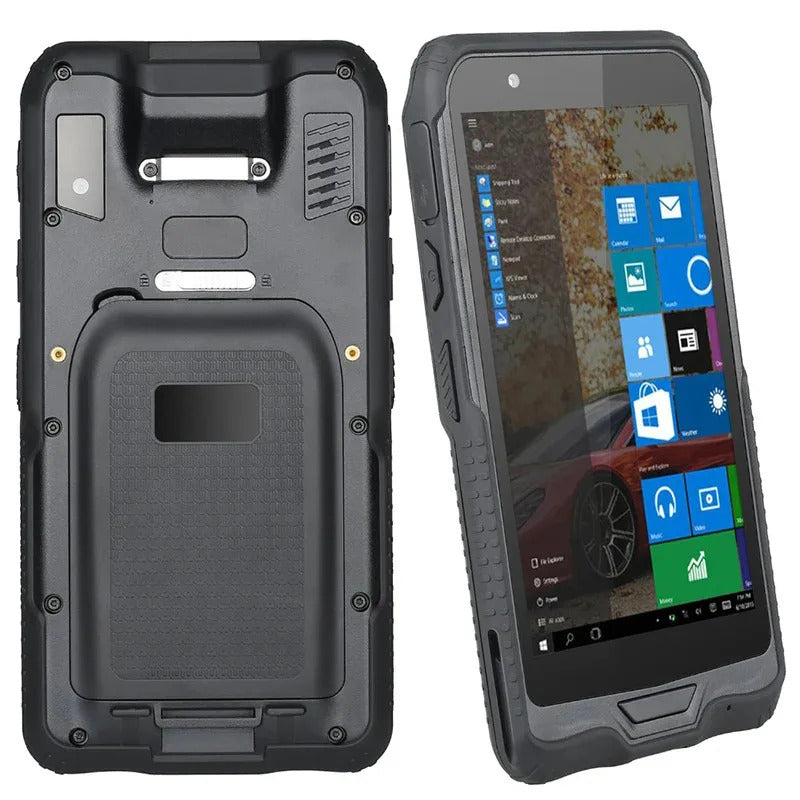

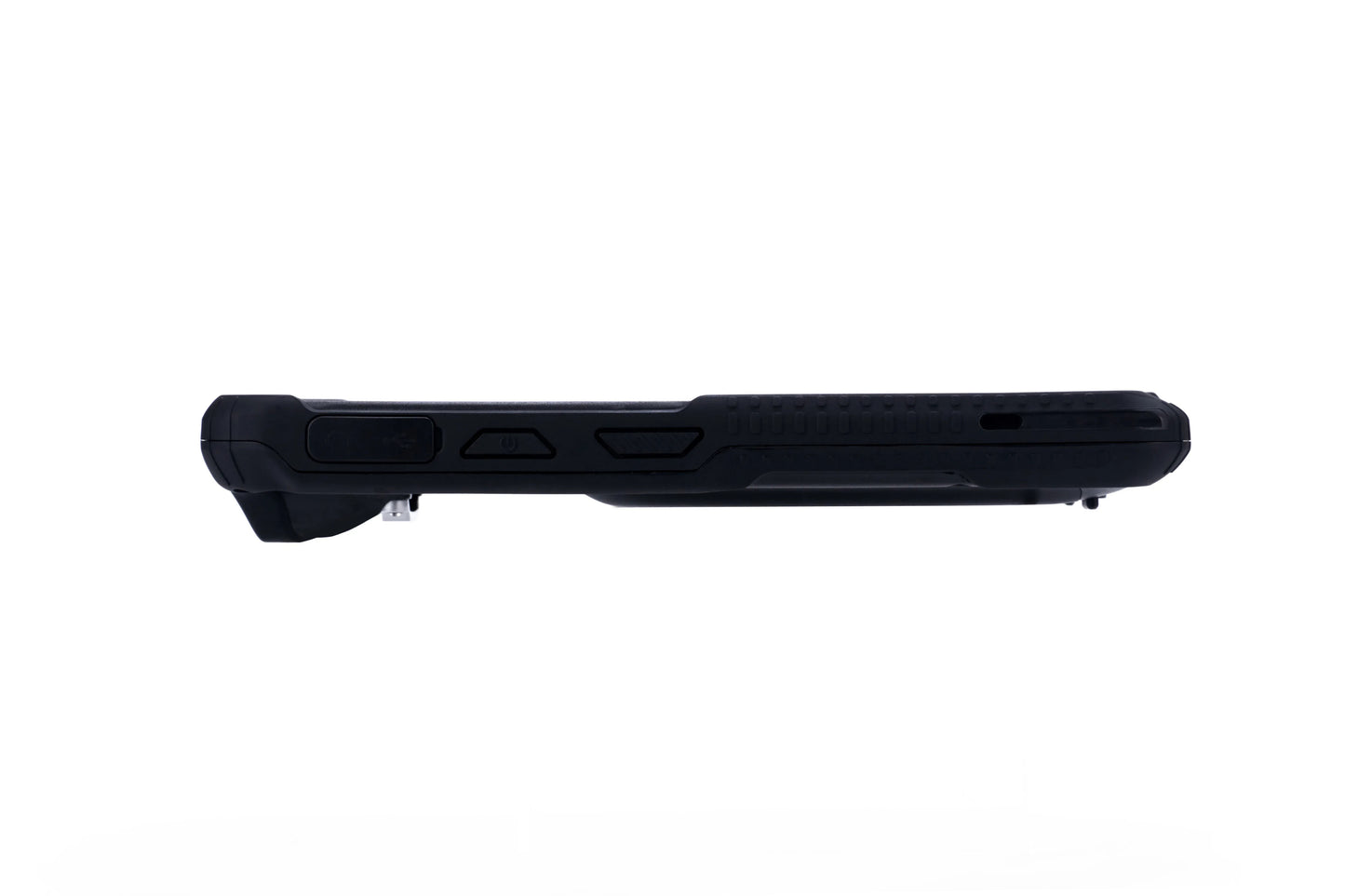

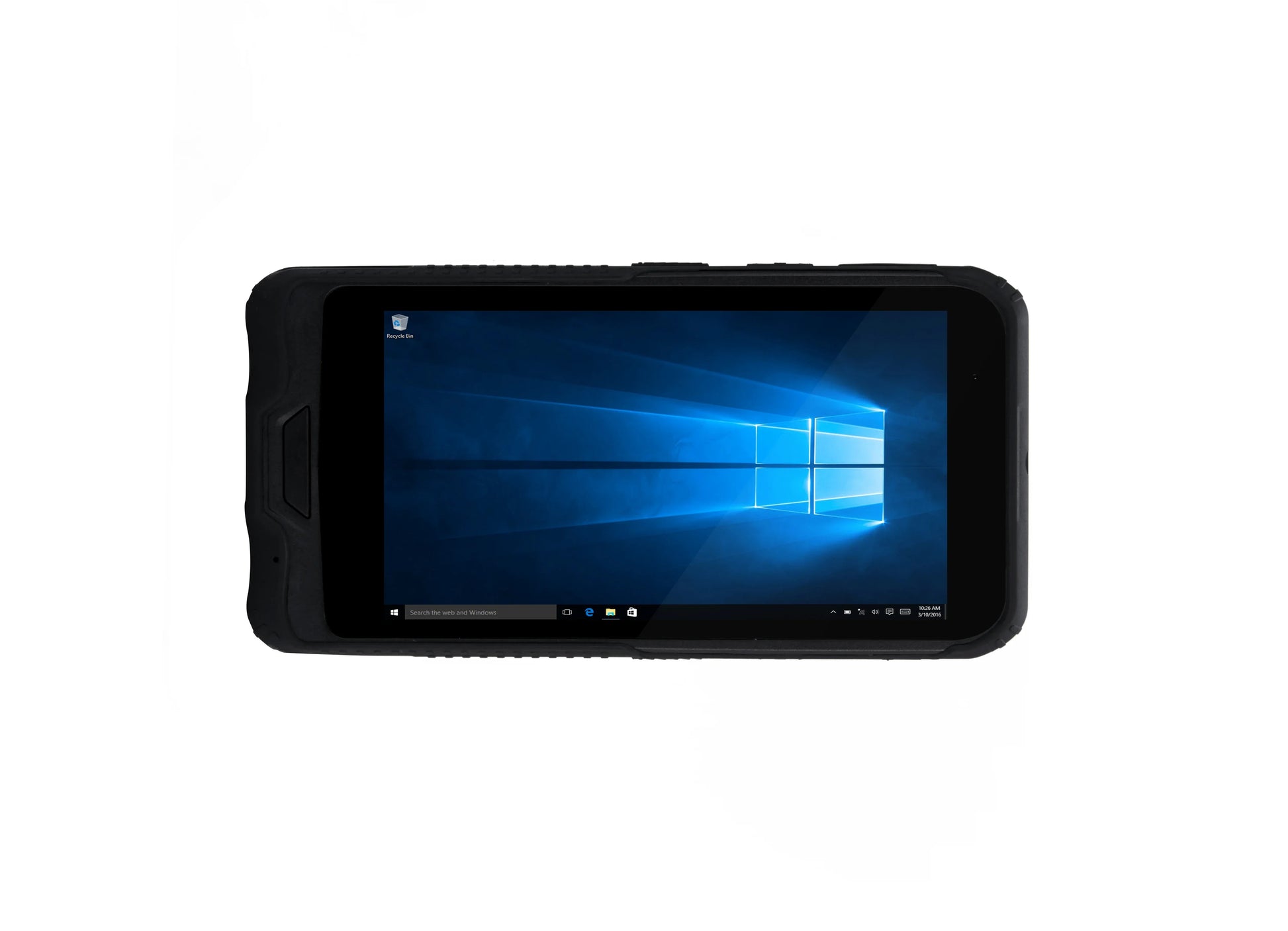

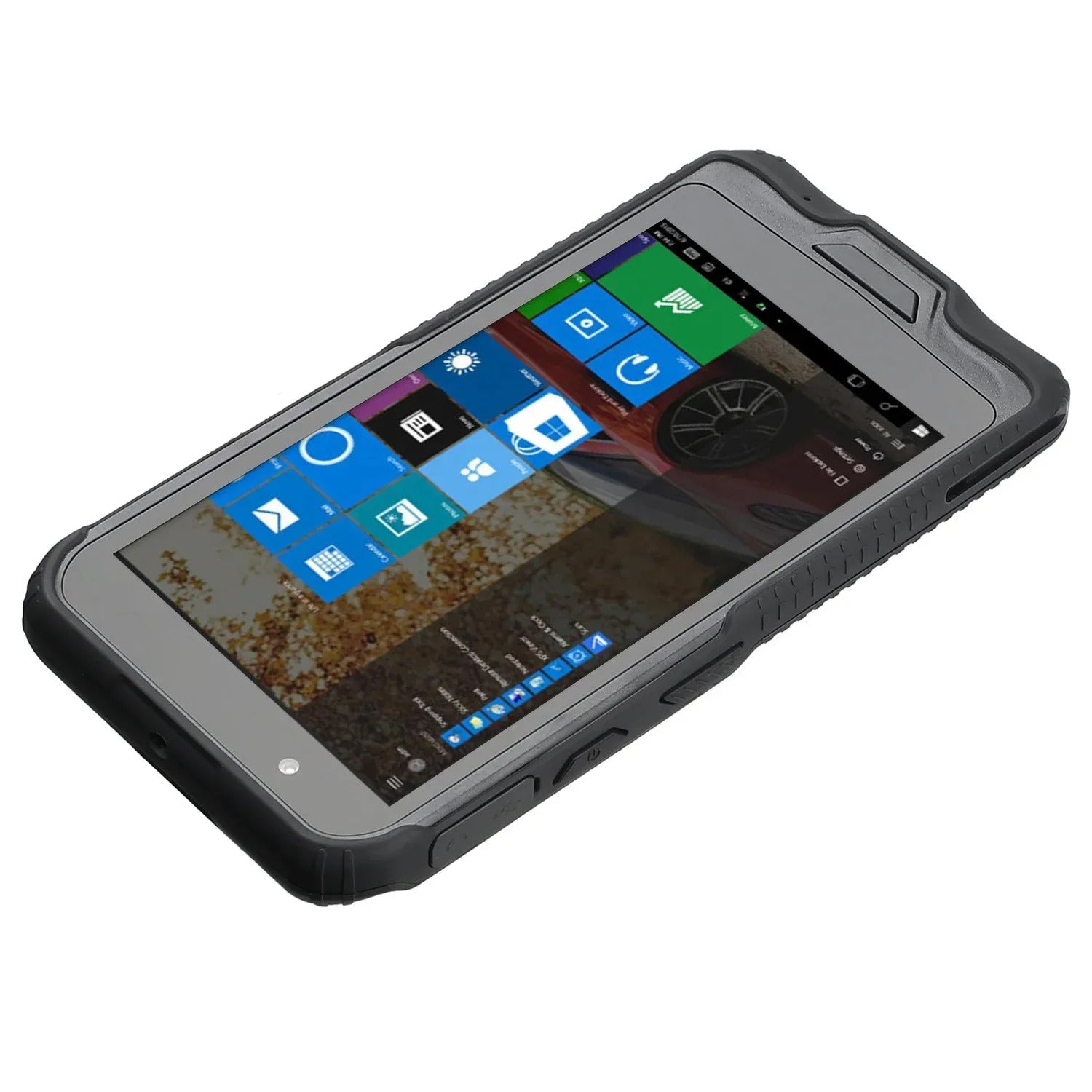

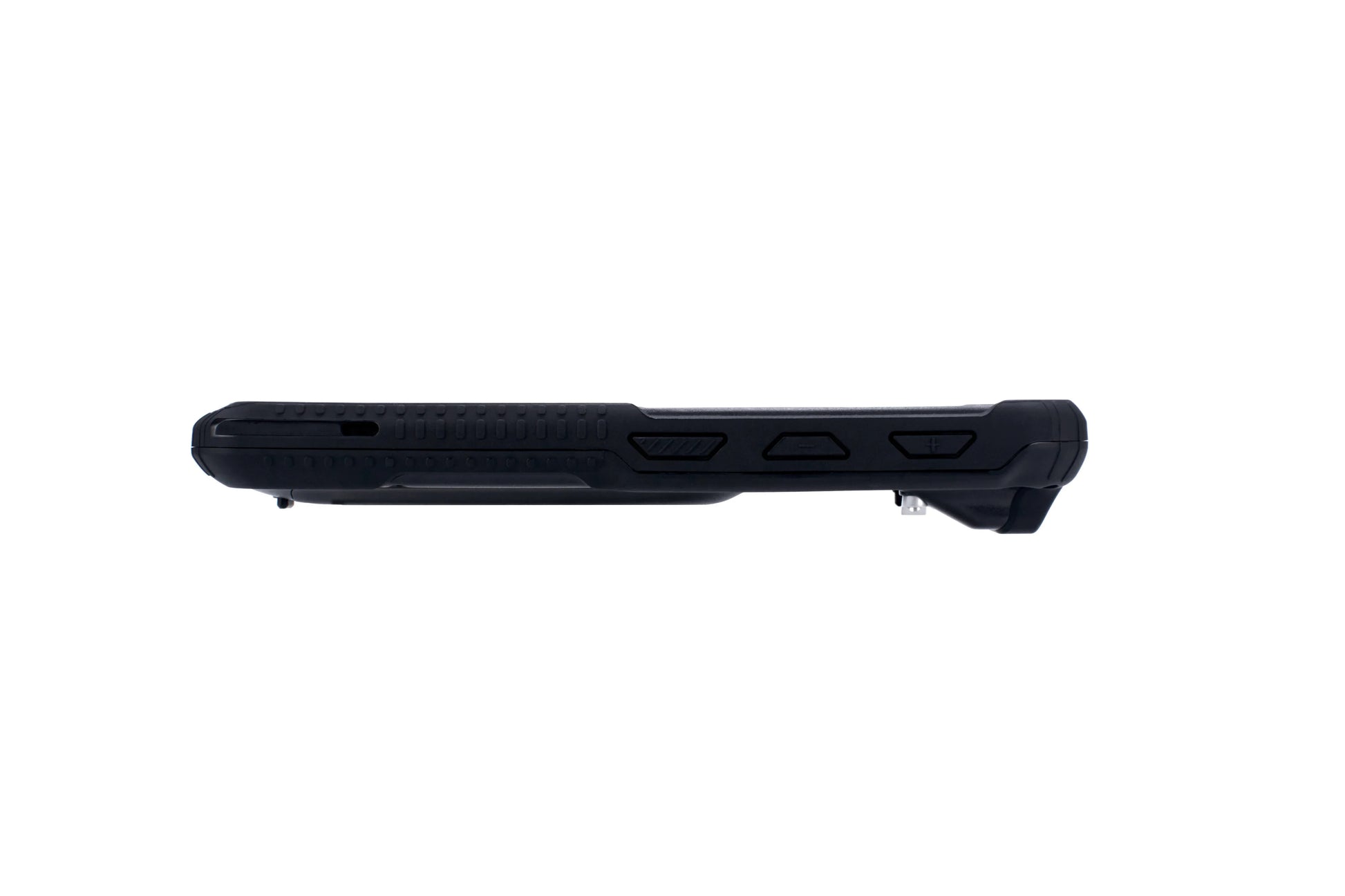

Product Real Picture

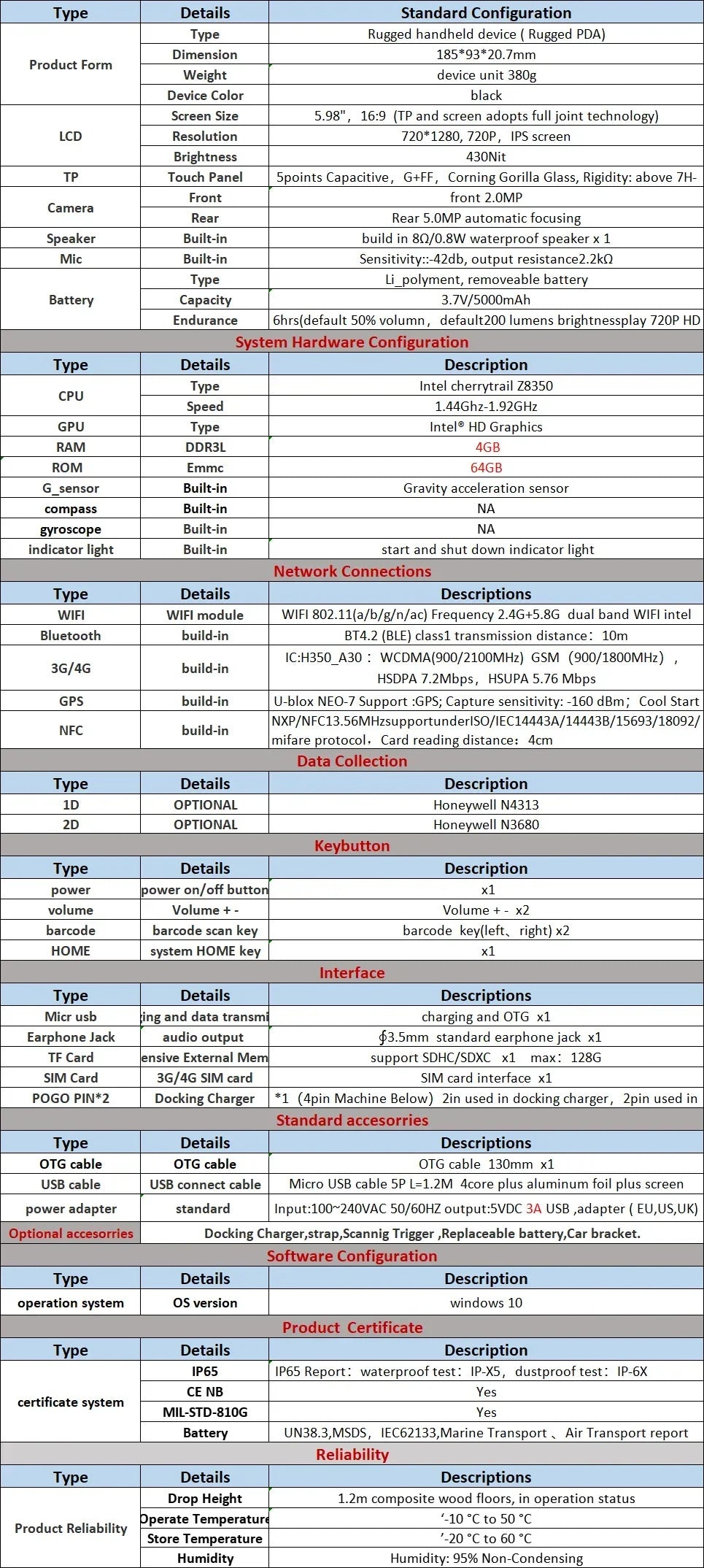

Product Specifications

Type	Details	Standard Configuration
Product Form	Type	Rugged handheld device ( Rugged PDA)
	Dimension	1859320.7mm
	Weight	device unit 380g
	Device Color	black

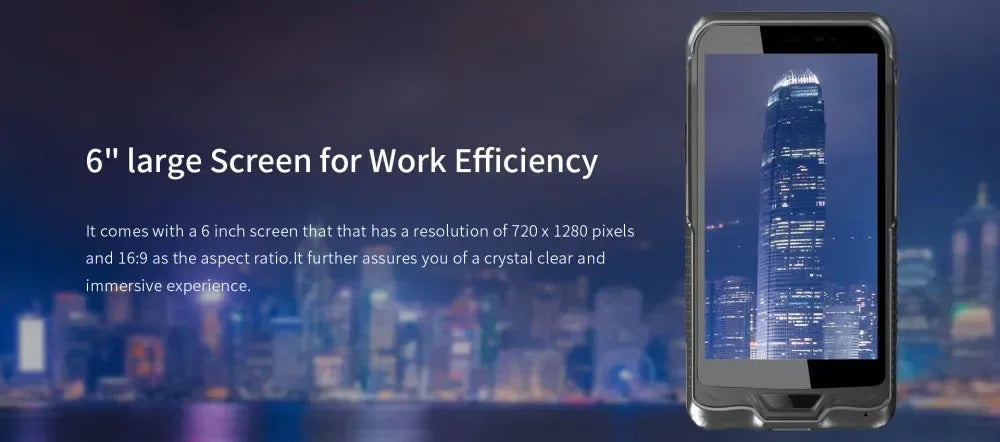

LCD	Screen Size	5.98"，16:9(TP and screen adopts full joint technology)
	Resolution	720*1280, 720P，IPS screen
	Brightness	430Nit
TP	Touch Panel	5points Capacitive，G FF，Corning Gorilla Glass, Rigidity: above 7H-Anti-scratch
Camera	Front	front 2.0MP
	Rear	Rear 5.0MP automatic focusing
Speaker	Built-in	build in 8Ω/0.8W waterproof speaker x 1
Mic	Built-in	Sensitivity::-42db, output resistance2.2kΩ
Battery	Type	Li_polyment, removeable battery

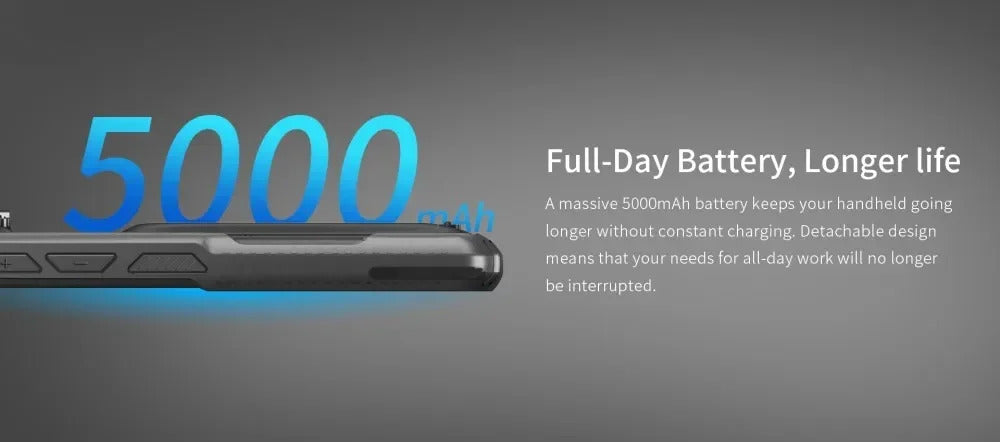

	Capacity	3.7V/5000mAh
	Endurance	6hrs(default 50% volumn，Default-200 lumens brightness display 720p HD video)
System Hardware Configuration
Type	Details	Description
CPU	Type	Intel Cherrytrail Z8350
	Speed	1.44Ghz-1.92GHz
GPU	Type	Intel ® HD Graphics
RAM	DDR3L	4GB
ROM	Emmc	64GB
G_sensor	Built-in	Gravity acceleration sensor
compass	Built-in	NA
gyroscope	Built-in	NA
indicator light	Built-in	start and shut down indicator light

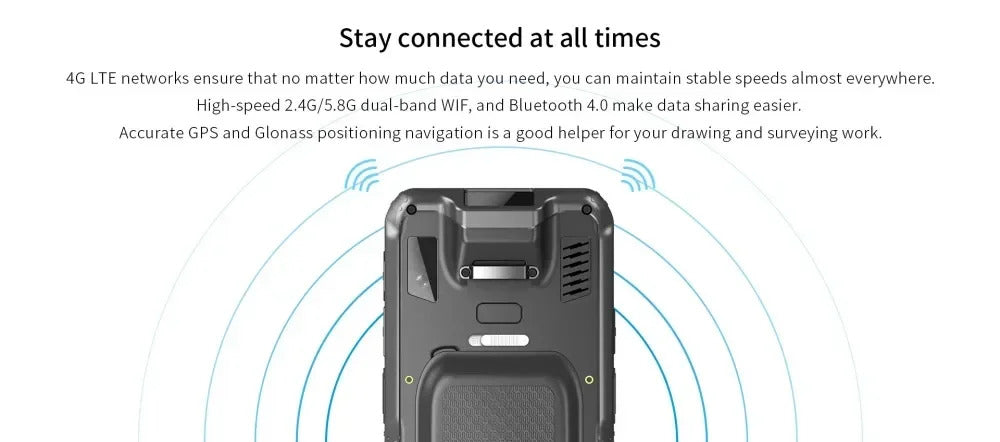

Network Connections
Type	Details	Descriptions
WIFI	WIFI module	WIFI 802.11(a/b/g/n/ac) Frequency 2.4G 5.8Gdual band WIFI intel 3165 D2WG
Bluetooth	build-in	BT4.2 (BLE) class1 transmission distance：10m
3G/4G	build-in	IC:H350_A30.：WCDMA(900/2100MHz)GSM（900/1800MHz），HSDPA 7.2Mbps，HSUPA 5.76 Mbps


GPS	build-in	U-blox NEO-7 Support :GPS; Capture sensitivity: -160 dBm；Cool Start Time：<50 seconds，Hot start time：<28seconds，frequency：0.25Hz... 10 MHz (configurable)
NFC	build-in	NXP/NFC13.56MHzsupportunderISO/IEC14443A/14443B/15693/18092/mifare protocol，Card reading distance：4cm

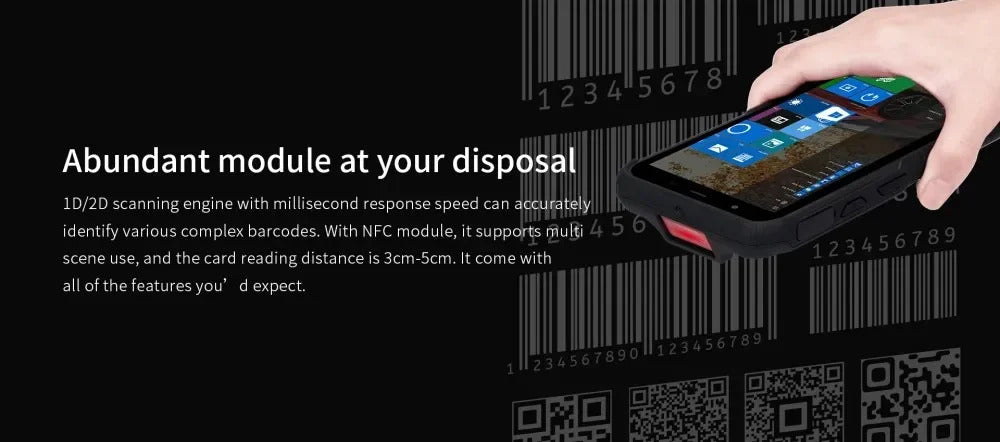

Data Collection
Type	Details	Description
1D	OPTIONAL	Honeywell N4313

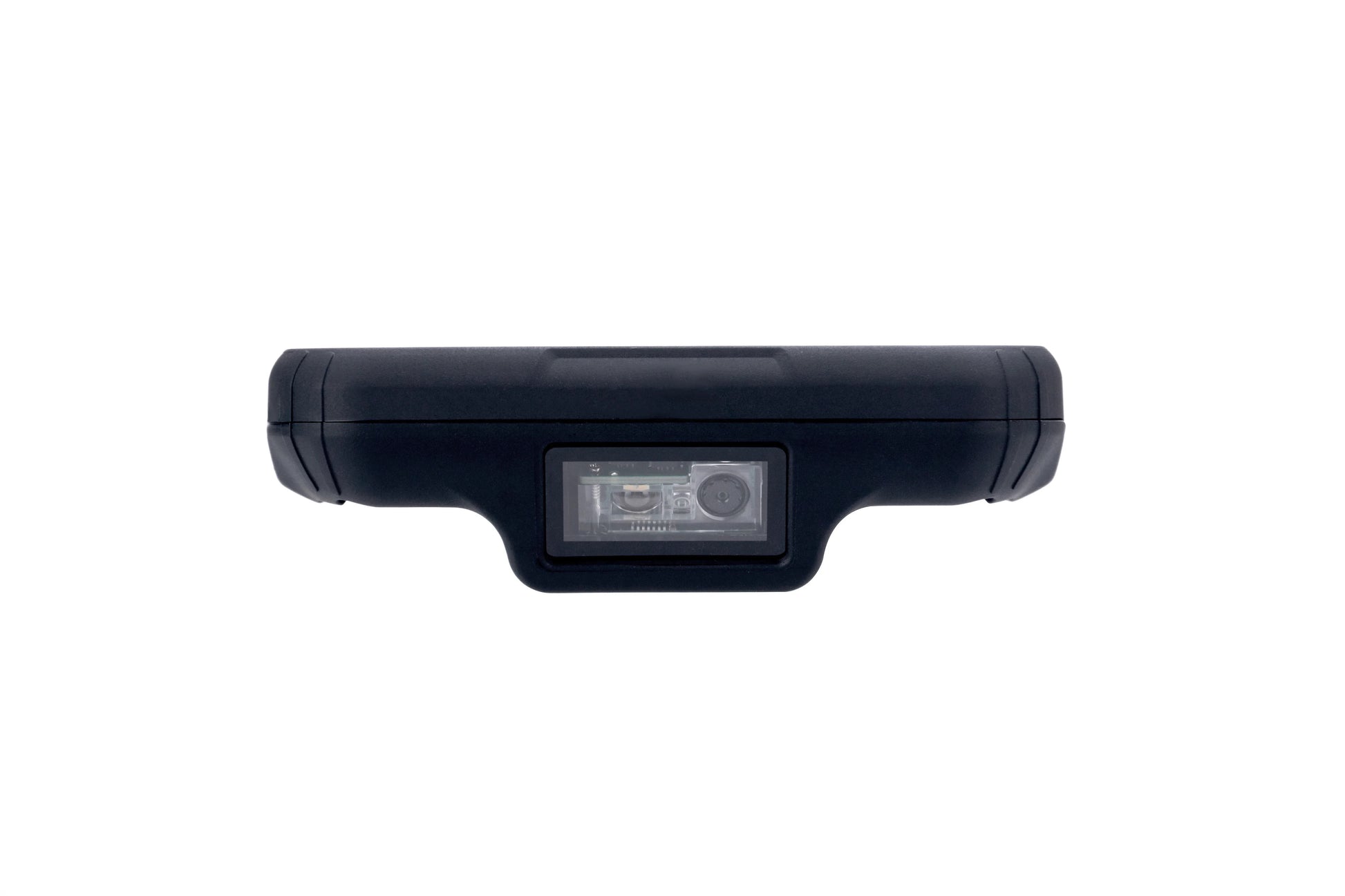

2D	OPTIONAL	Honeywell N3680
Keybutton
Type	Details	Description
power	power on/off button	x1
volume	Volume -	Volume -x2
barcode	barcode scan key	barcodekey(left、right) x2
HOME	system HOME key	x1
Interface
Type	Details	Descriptions
Micro USB flash drive	charging and data transmission	charging and OTGx1
Earphone Jack	audio output	∮3.5mmstandard earphone jackx1
TF Card	Extensive External Memory	support SDHC/SDXCx1max：128G
SIM Card	3G/4G SIM card	SIM card interfacex1

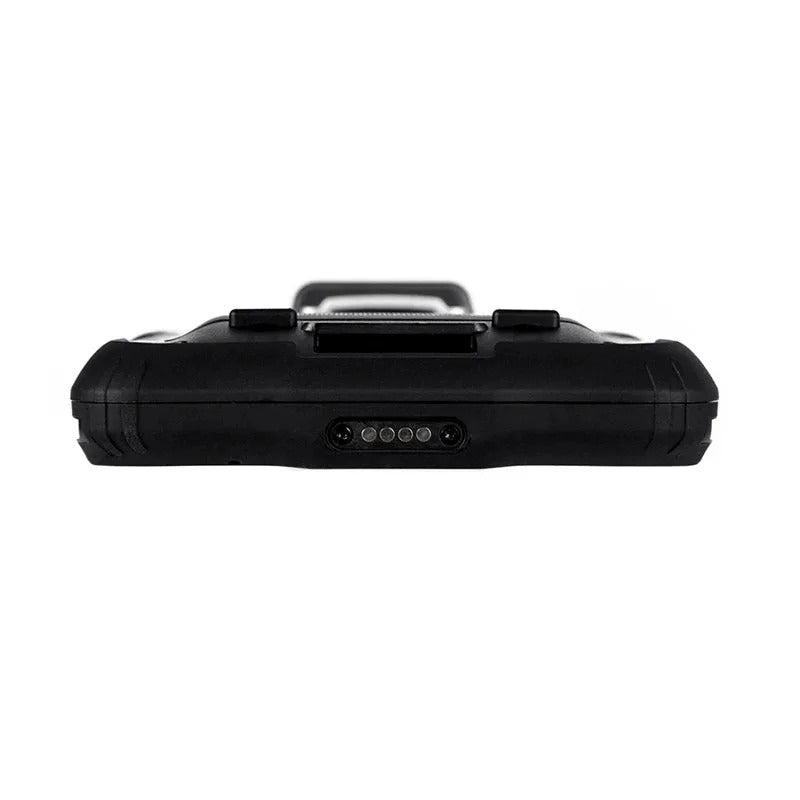

POGO PIN * 2	Docking Charger	*1（4pin Machine Below）2in used in docking charger，2pin used in USB expand
Standard accesorries
Type	Details	Descriptions
OTG cable	OTG cable	OTG cable 130mmx1
USB cable	USB connect cable	Micro USB cable 5P L=1.2M4core plus aluminum foil plus screen shielding
power adapter	standard	Input:100~240VAC 50/60HZ output:5VDC3AUSB ,adapter ( EU,US,UK)

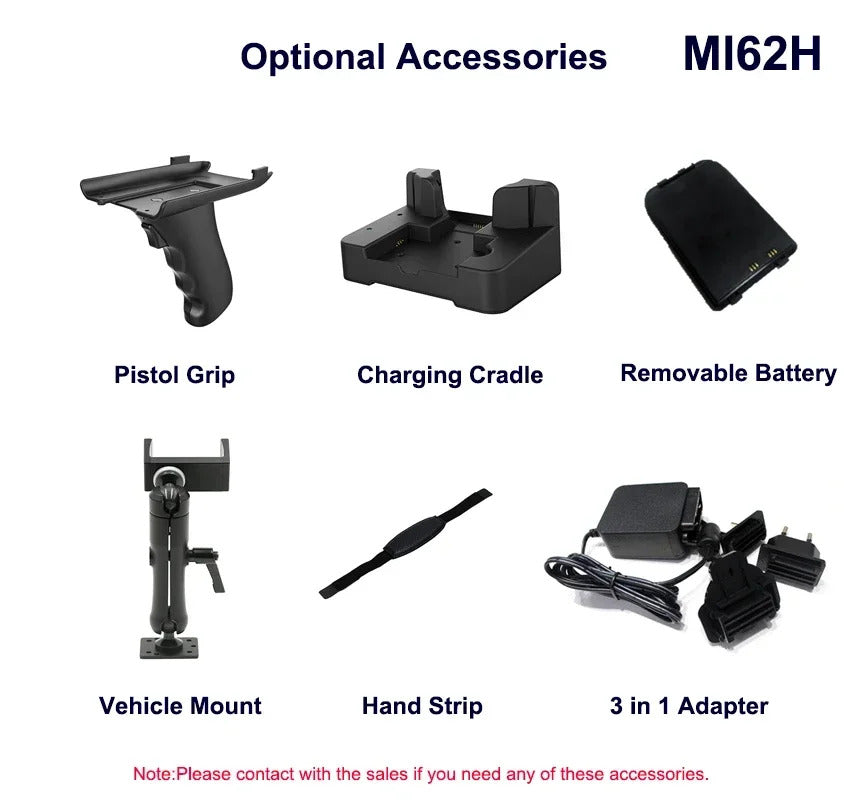

Optional accesorries	Docking Charger,strap,Scannig Trigger ,Replaceable battery,Car bracket.
Software Configuration
Type	Details	Description
operation system	OS version.	windows 10

ProductCertificate
Type	Details	Description

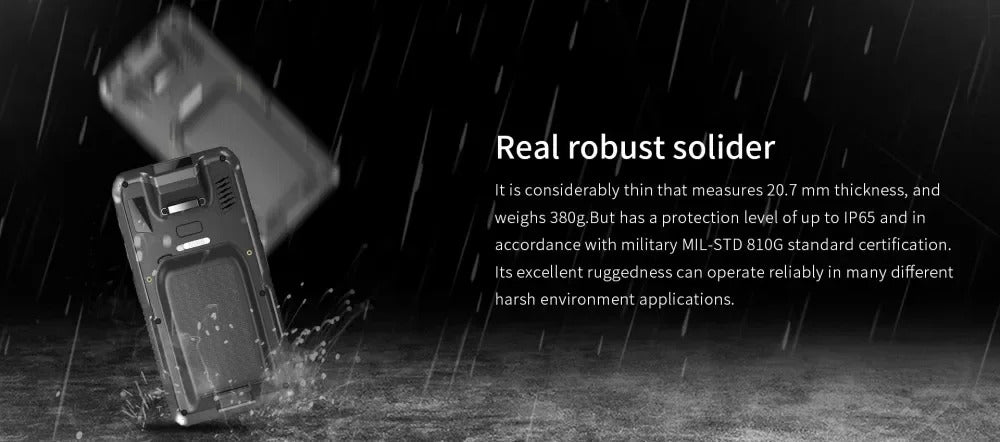

certificate system	IP65	IP65 Report：waterproof test：IP-X5，dustproof test：IP-6X. a.nozzle inner diameter：6.3mm；b.water-carrying capacity：12.5±0.625L/min.； c.water pressure：adjust according to specified water-carrying capacity； d.central part of main water flow：Away from the nozzle 2 .5 mdiameter about 40mm circle； e.water spray time for outter shell per a square meter：about 1min；f. test time：at least 3min； g. distance from nozzle to outter shell surface：2.5~3m。。after tested,check sample and no water inside situation
	CE NB.	Yes
	MIL-STD-810G	Yes
	Battery	UN38.3, MSDS，IEC62133,Marine Transport、Air Transport report
Reliability
Type	Details	Descriptions
Product Reliability	Drop Height	1.2m composite wood floors, in operation status
	Operate Temperature	‘-10°C to 50°C
	Store Temperature	’-20°C to 60°C
	Humidity	Humidity: 95% Non-Condensing

Q :Are you manufacturer?

A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.

Q: Would you provide SDK for me?

A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.

Q: What's Your Products Warranty?

A: We Offer 24 Months Warranty after shipment sent.

Q:How to repair the device if any problem ?

A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
