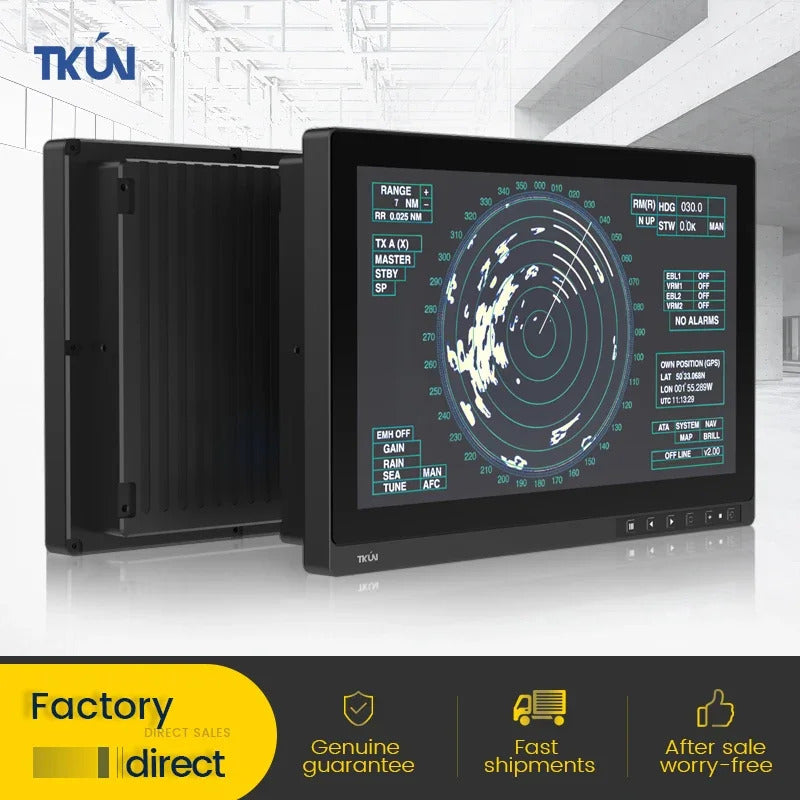

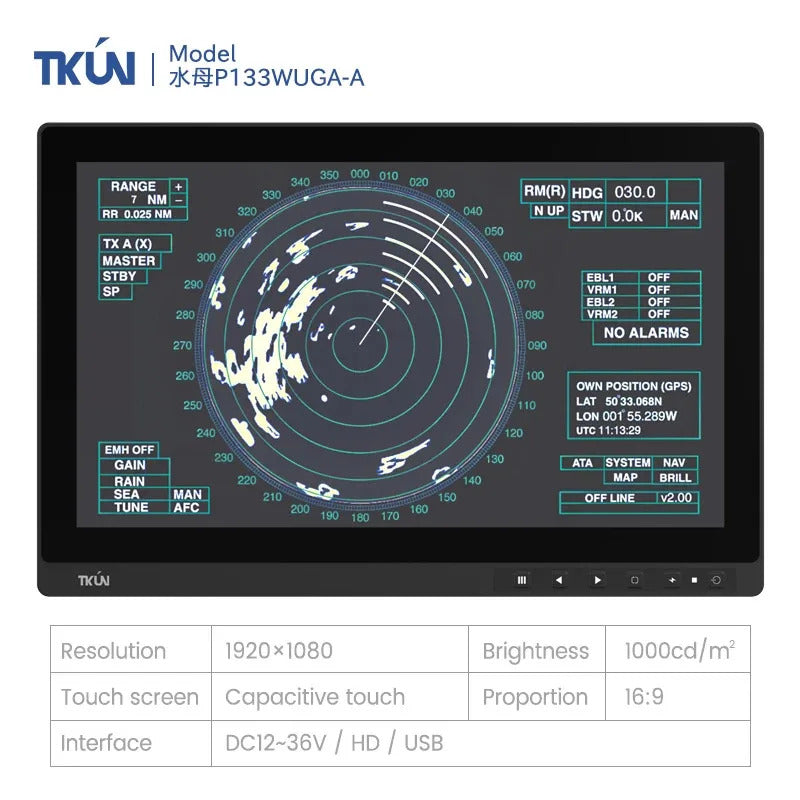

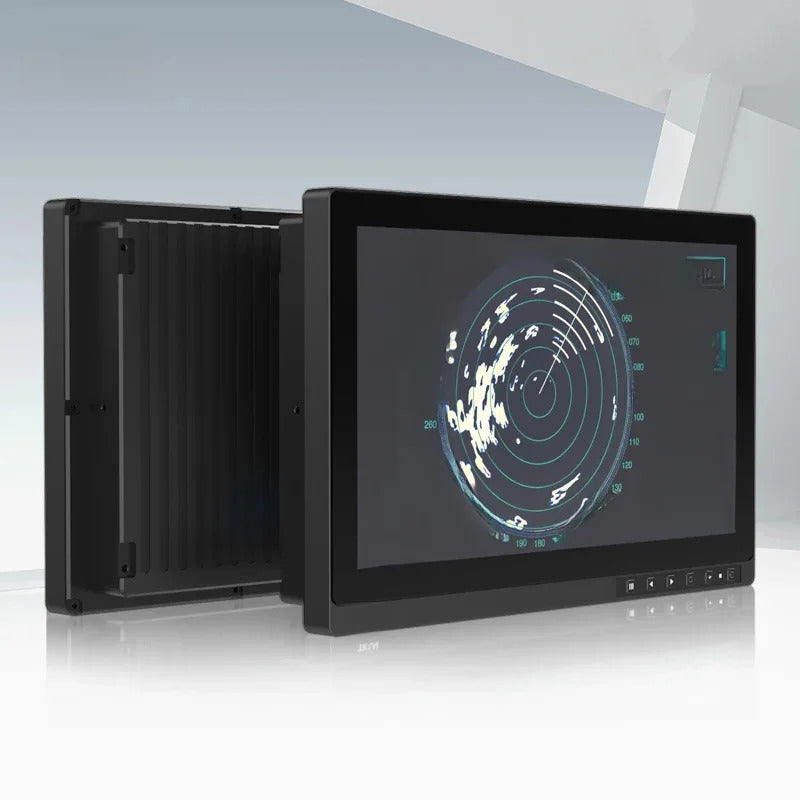

Factory 13.3 Inch Marine/yachts Displays 1000-1500Nits Outdoor Ag glass Binding Ip65 Waterproof Industrial Touch Screen Monitor
Factory 13.3 Inch Marine/yachts Displays 1000-1500Nits Outdoor Ag glass Binding Ip65 Waterproof Industrial Touch Screen Monitor
Couldn't load pickup availability
General Parameters
1. size: 10.1", 10.4", other sizes 12", 15", 17", 19", 21.5", 22"

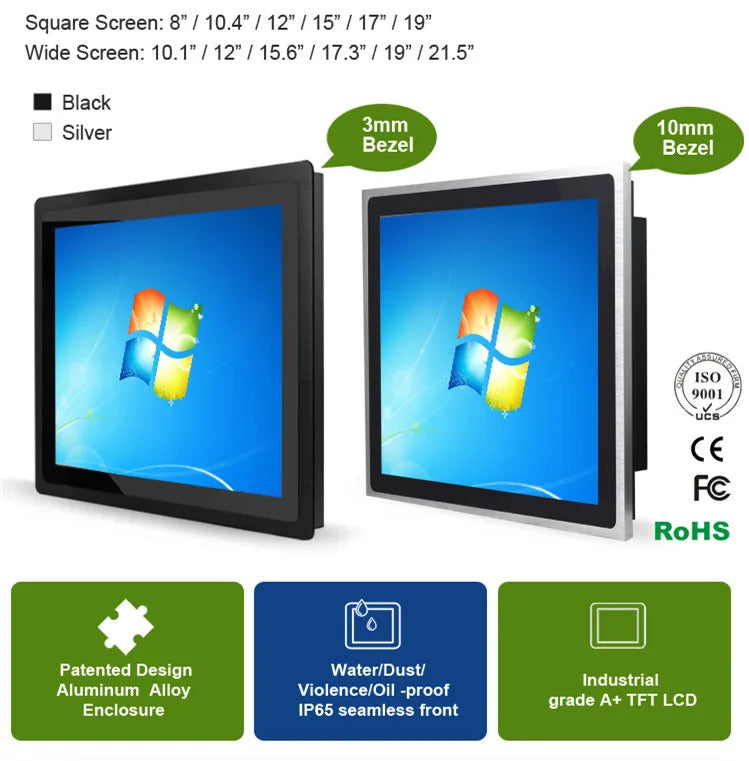

2.Patented Design: Aluminum Alloy Enclosure
3.Panel: Industrial grade A TFT LCD
4.IP65 standard seamless front with water/dust/oil–proof

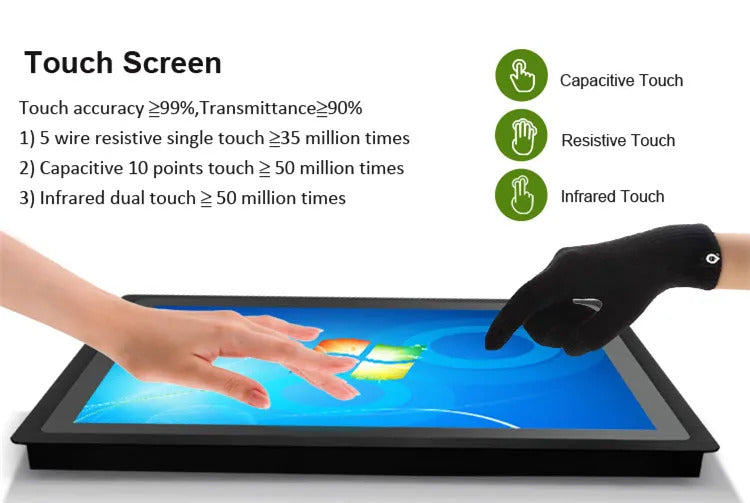

5.Touch Screen:10-point capacitive/2-ponit infrared touch
6.Luminance:300nit-1000nit

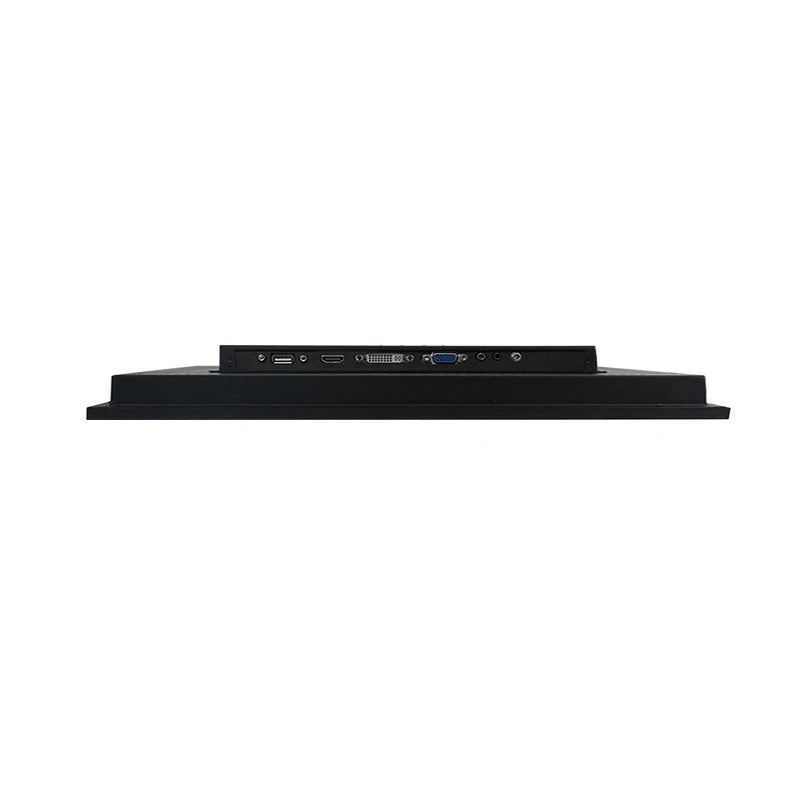

7.Interface Type:DVI/VGA/HD-MI
8.Power Input: 110-240V AC, 50/60Hz
9.Response time: 5ms
Apply to Different Environments
1.Wide working temperature range : -10℃—60℃
2.Wide voltage range: 12V-24V
3.Anti-Interference / Anti-Static
Applications:
Industrial Control, ATM, POS, Indoor/outdoor Kiosks, Transportation, Advertisement machine, Gaming, Medical,etc.
Size |
10.4inch |
12inch |
15.6inch |
17inch |
19inch |
19inch wide |
21.5inch |
Display | |||||||
Panel Type |
Industrial LCD panel A grade |
||||||
Aspect Ratio |
4:3 |
4:3 |
16:9 |
4:3 |
4:3 |
16:10 |
16:9 |

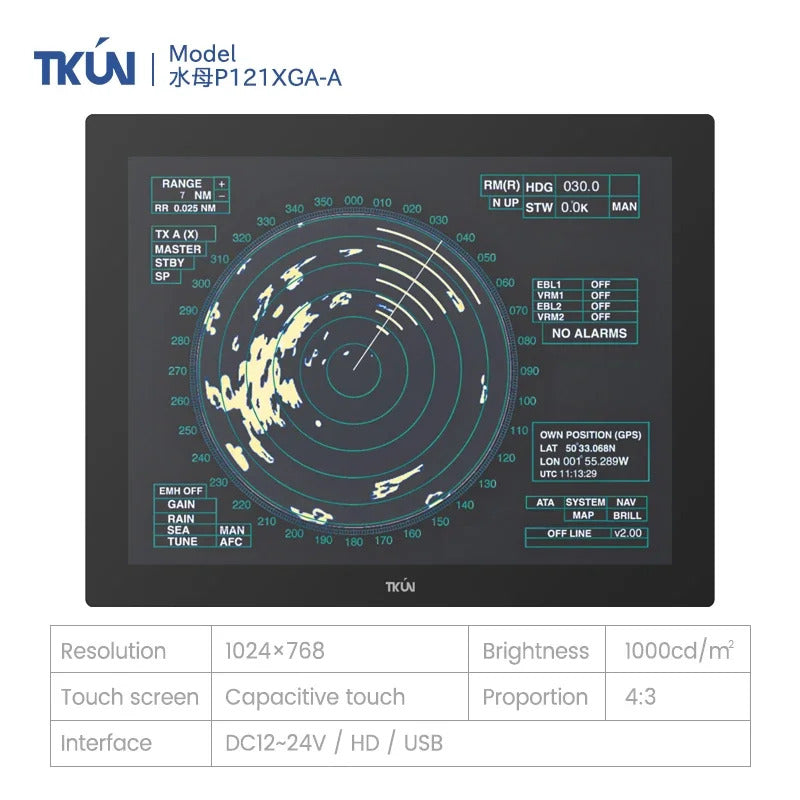

Resolution |
1024*768 |
|
1920*1080 |
1280*1024 |
1280*1024 |
1440*900 |
1920*1080 |
Contrast |
800:1 |
800:1 |
1000:1 |
1000:1 |
1000:1 |
1000:1 |
1000:1 |
Luminance |
250nit-1000nit |
1000nit |
1000nit |
300nit-1000nit |
300nit-1000nit |
300nit-1000nit |
300nit-1000nit |
Response time |
5ms |
5ms |
5ms |
5ms |
5ms |
5ms |
5ms |

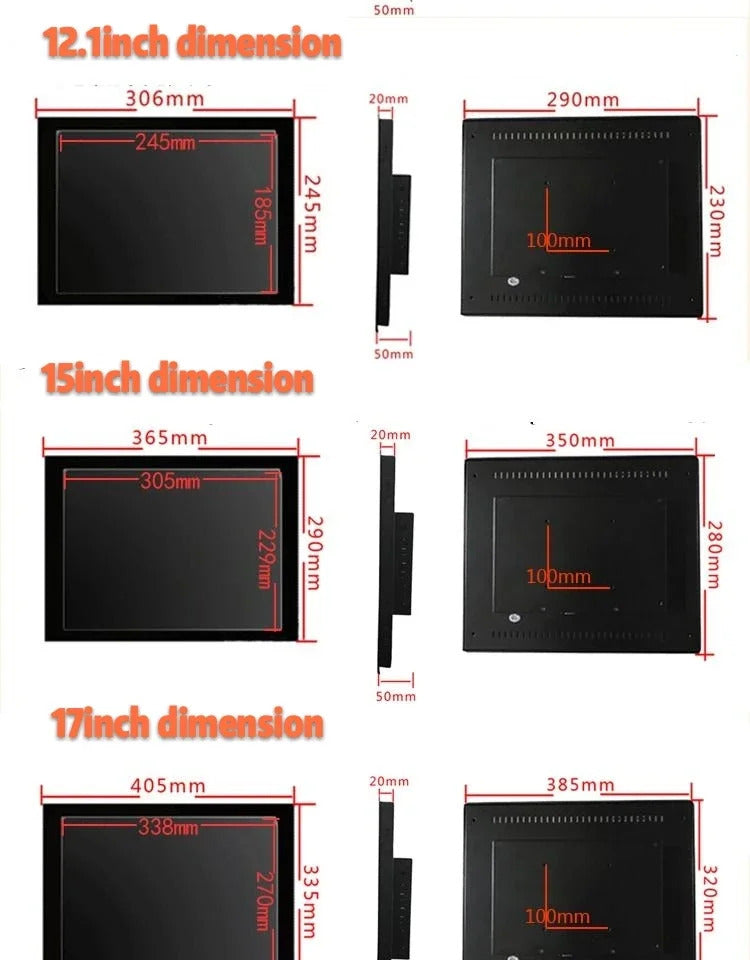

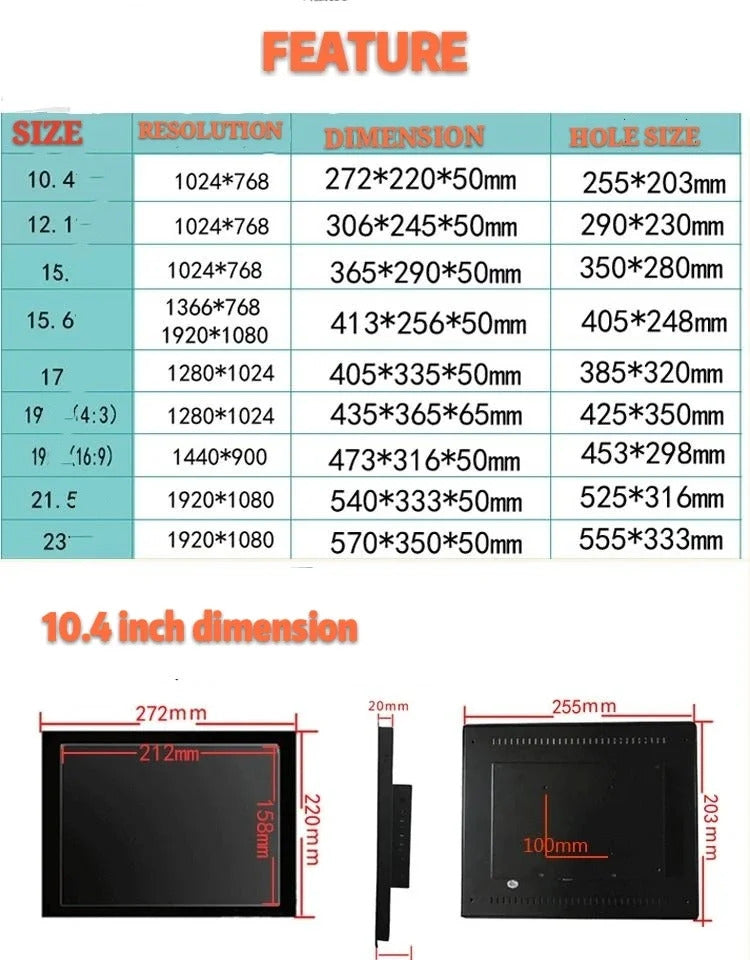

Active Area (mm) |
227*131 |
250*188.4 |
305.8*229.8 |
341.5*274 |
383*308 |
414.3*262.5 |
478*269.24 |
Displays Colours |
16.7M(8-bit) |
16.7M(8-bit) |
16.7M(8-bit) |
16.7M(8-bit) |
16.7M(8-bit) |
16.7M(8-bit) |
16.7M(8-bit) |
View angle |
89/89/89/89 |
75/75/75/75 |
75/75/75/75 |
75/75/75/75 |
85/85/85/85 |
85/85/85/85 |
89/89/89/89 |
Touch Screen |
5 wire resistive touch screen/10-point capacitive touch screen/ Dual Infrared touch |
||||||

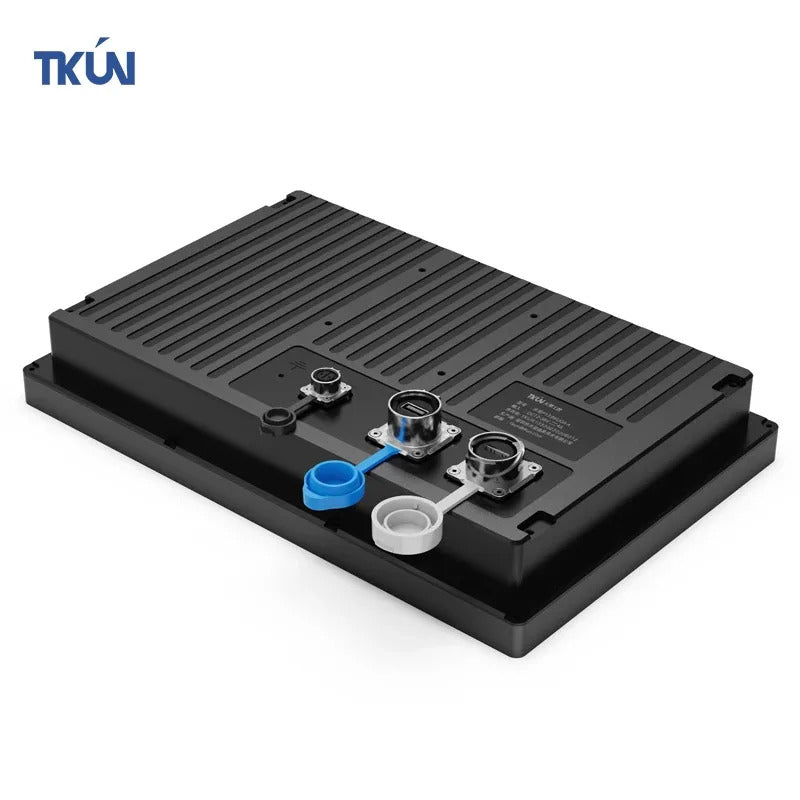

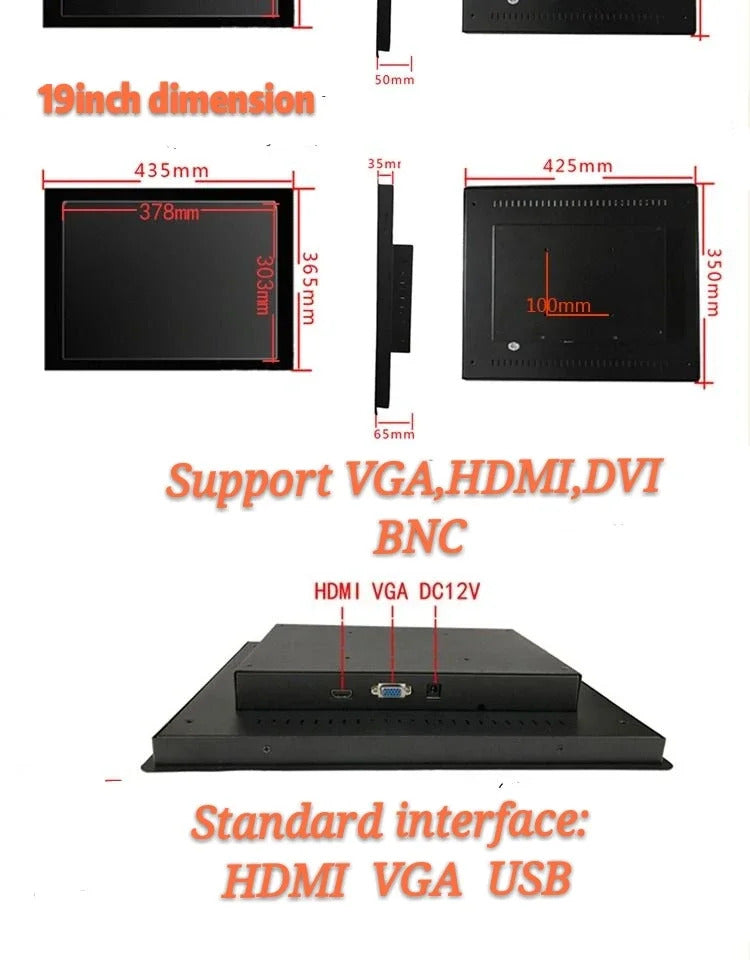

Interface |
HDMI DVI VGA USB, DVI VGA USB optional |
||||||
Power Input |
110-240V AC, 50/60Hz |
||||||
Power Consumption |
≤30W |
||||||
Power Standby |
≤1.5W |
||||||
Plug&Play |
DDC1/2B |
||||||
Working Life |
More than 50,000 hours |
||||||
Operation Temperature |
-10°C-50°C |
||||||
Storage Temperature |
-10°C-60°C |
||||||
Operation Humidity |
10%--80% |
||||||
Storage Humidity |
10%-90% |
||||||
Metal Shell |
Aluminum alloy enclosure |
||||||
Color |
Silver, black color optional |
||||||
Bezel thickness |
3mm bezel, 10mm bezel (optional) |
||||||
IP rating |
IP65 for front Panel |
||||||

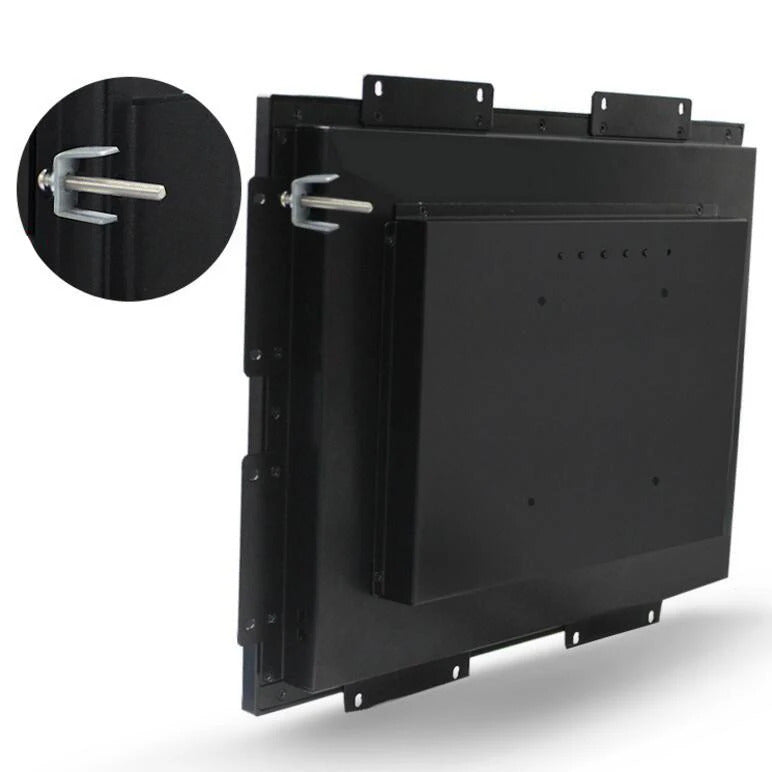

Installation |
VESA, Embedded, Wall Mount, Desktop optional |
||||||
|
|
||||||
